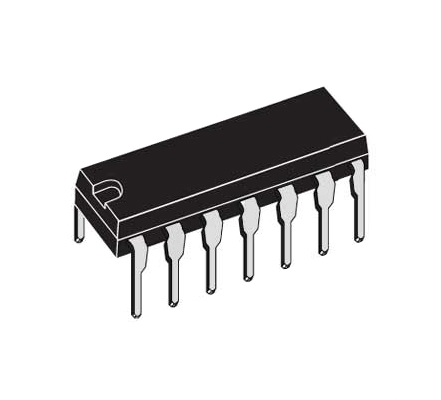

CD4001BE IC ersetzt auch HCF4001, CD4001, MC14001 Quad 2In NOR Gate DIP14

CD4002BE CMOS IC Dual 4In NOR Gate DIP14 CD4002BE CMOS IC Dual 4In NOR Gate DIP14 Ersetzt ua MC14002 HEF4002 HCF4002 SCL4002

CD4007UBE CMOS DIP14 Dual Compl Pair plus Inverter

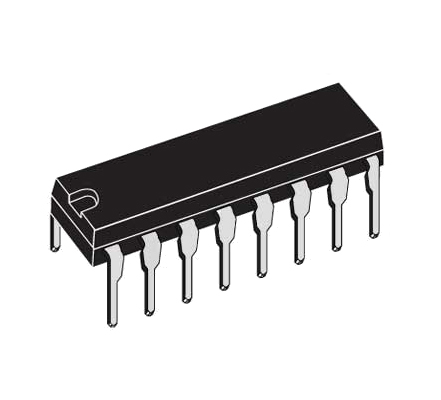

HEF40097BP CMOS DIP16 3-state Hex Non-inverting Buffer

HEF40098BP CMOS DIP16 3-state hex inverting Buffer DIP16 teilweise MM80C98N = Ersatz zu HEF 40098BP

CD4010AF TTL onverter Logic Funxct NINV HEX BUFFER/CONVERTERS  CMOS TO DTL/TTL HEX CONVERTER

CD4012 BE DIP14 IC CD4012 CMOS NAND GATES Dual 4Input

CD4014 IC CMOS DIP16  8-stuffiges Schieberegister

MC14016B = 4016B = CD4016 = HCF4016  Quad Analog Switch / Quad Multiplexer ( 4xSCHALTER 4xSTEUEREIN ) The MC14016B quad bilateral switch is constructed with MOS P–channel and N–channel enhancement mode devices in a single monolithic structure. Each MC14016B consists of four independent switches capable ofcontrolling either digital or analog signals. The quad bilateral switch is used in signal gating, chopper, modulator, demodulator and CMOS logic implementation.

CD4018 = MC14018 = HCF4019 = C4018 = CMOS IC CMOS DIP16  CMOS PRESETTABLE DIVIDE-BY-N COUNTER

CD4019 CMOS IC DIP16 MC14019 4x 2-Bit Multiplexer

CD4020BE 14stufiger Binärzähler DIP16 14Stage Binary Counter DIP16

CD4028BE CMOS IC DIP16 = C4028 = MC14028 BCD Decimal Decoder

CD4031BE = C4031 = MC14031 = HEF4031 = HCF4031 = CMOS 64-STAGE STATIC SHIFT REGISTER DIP16

HCF4032BE CMOS IC DIP16 HCF4032B TRIPLE SERIAL ADDERS  HCF4032B TRIPLE SERIAL ADDERSINVERT INPUTS ON ALL ADDERS FOR SUM COMPLEMENTING APPLICATIONS FULLY STATIC OPERATION...DC TO 10MHz (typ.) VDD = 10V BUFFERED INPUTS AND OUTPUTS SINGLE-PHASE CLOCKING STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS

CD4033BE = Dezimal Zähler + 7Segment Display Output   CD4033BE = Dezimal Zähler + 7Segment Display Treiber bereits integriert Decade Counter/Divider DIP16 / Dekadenzähler, Teiler Pinlayout usw. siehe auch weitere Bilder !

CD4035B = 4-Stage Parallel In/Parallel Out Shift Register 16-PDIP -55 to 125°Cis a four-stage clocked signal serial register with provision for synchronous PARALLEL inputs to each stage and SERIAL inputs to the first stage via JK\ logic. Register stages 2, 3, and 4 are coupled in a serial D flip-flop configuration when the register is in the serial mode (PARALLEL/SERIAL control low).

HCF4038B = MC14038BCP Triple Serial Adder (Negative) INVERT INPUTS ON ALL ADDERS FOR SUM COMPLEMENTING APPLICATIONS FULLY STATIC OPERATION...DC TO 10MHz (typ.) VDD = 10V BUFFERED INPUTS AND OUTPUTS SINGLE-PHASE CLOCKING STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS

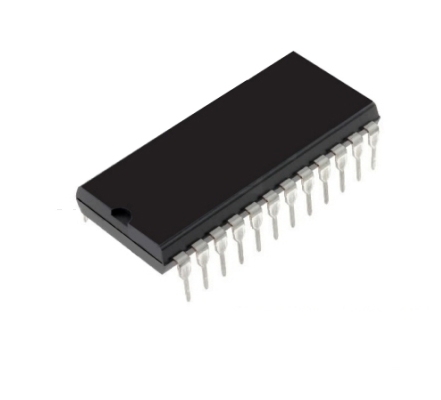

CD4039AE HCF4039AE CMOS-IC DIP24-Breit RCA 4-Word x 8-Bit RAM Restbestände solange vorrat reicht 2 versch Hersteller

HEF4042B = HCF4042 = CD4042B = MC14042 = SCL4042 = 4xSPEICHER-REGISTER QUAD CLOCKED D LATCHCLOCK POLARITY CONTROLQ AND Q OUTPUTSCOMMON CLOCKLOW POWER TTL COMPATIBLESTANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS

CD4045 = MC14045 = HCF4045 = C4045 = 4045 BE CMOS IC DIP16 CD4045BE Binärzähler 21-Stage Counter

CD4048BE = HEF4048 = HCF4048 = MC14048 ? SCL4048 = CMOS Multifunction Expandable 8-Input

CD4050 = MC14050 = HCF4050 = HEF4050 = C4050 SCL4050 CMOS IC DIP16 = SCL4050B Hex Non Invert Buffer

CD4052BE = HEF4052 = HCF4052 = SCL4052 = MC14042 = CMOS Analog Multiplexers/Demultiplexers with Logic Level Conversion Analog Mtpx Dem Mtpx Analog and Digital Multiplexing and Demultiplexing A/D and D/A Conversion Signal Gating

 CD4053BE = HEF4053 = HCF4053 = SCL4053 = MC14053 = CMOS Analog Multiplexers/Demultiplexers with Logic Level Conversion Analog Mtpx Dem Mtpx  Analog and Digital Multiplexing and Demultiplexing A/D and D/A Conversion Signal Gating

CD4054 = MC14054 = HCF4054 = C4054 = HEF4054 BE CMOS IX DIP16 CD4054BE 4 SEGMENT ANZEIGETREIBER

4056 BE CMOS IC DIP16 CD4056 BCD  7-Segment Decoder Latch

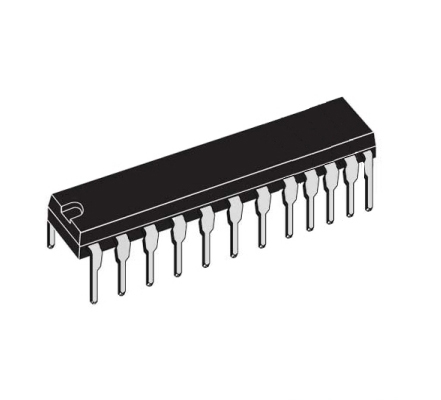

HEF4059B CMOS IC DIP24 HEF4059BP Programmable divide-by-n Counter

HBF4062 AE CMOS IC DIP16 HBF4062 Vorrat reicht Ersatzteil IC

MC14070B CMOS IC DIP14 MC17070BCP Quad 2Inp Exclu OR Gate CMOS Quad Exclusive-OR and Exclusive-NOR Gate Medium Speed Operation Baugleich zu CD4071BE, HCF4070, HEF4070, MC14070, SCL4070, DC Supply Voltage Range -0,5... +18V DC Capable of Driving Two Low-Power TTL Loads or One Low-PowerSchottky TTL Load Over the Rated Temperature RangeDouble Diode Protection on All InputsMC14070BCP Replacement for CD4030B and CD4070B Types

MC14071BCP CMOS IC DIP14 = MC14071BCP = Quad 2Inp OR Gate Baugleich zu CD4071BE, HCF4071, HEF4071, Quad 2-Input OR Gate B-Suffix Series CMOS Gates Supply Voltage Range = 3.0 Vdc to 18 Vdc

CD4072BE CMOS IC DIP14 CD4072BE = Dual 4Input OR Gate

CD4076BE CMOS IC DIP16 CD4076 = 4Bit D-Register 3xState Out / 4BIT D-Type REGISTER TRISTATE Three-Stats Outputs/ CMOS 4-BIT D-TYPE REGISTERS

CD4077BE CMOS IC DIP14 CD4077BE = Quad Excl NOR Gate Ersetzt ua MC14077 HEF4077 HCF4077 SCL4077

CD4078BE CMOS IC DIP14 CD4078 = 8-Input 1xNOR Gate Ersetzt ua MC14078 HEF4078 HCF4078 SCL4078

CD4085BE CMOS IC DIP14 = CD4085 2xAND OR NOT Gate Ersetzt ua MC14085 HEF4085 HCF4085 SCL4085

CD4086 CMOS IC DIP14 CD4086B CMOS EXPANDABLE 4-Wide 2-Inputs AND-OR-INVERT Gate. Ersetzt ua. CD4086, HEF4086, HCF4086, MC14086, SCL4086 ua. Solange Vorrat reicht

4089 CMOS IC DIP16  CD4089 BCN Binary Rate Multiplier

HCF4095B CMOS IC DIP14 GATE J-K MASTER-SLAVE FLIP-FLOPS DIP14 Ersetzt ua MC14095 HEF4095 HCF4095 SCL4095 CD4095   GATE J-K MASTER-SLAVE FLIP-FLOPS16 MHz TOGGLE RATE (typ.) AT VDD - VSS = 10V GATED INPUTS QUIESCENT CURRENT SPECIFIED TO 20v FOR HCC DEVICE5V, 10V AND 15V PARAMETRIC RATINGSINPUT CURRENTOF 100nA AT18V AND 25FOR HCC DEVICE100% TESTED FOR QUIESCENT CURRENTMEETS ALL REQUIREMENTS OF JEDECTENTATIVE STANDARD No 13ASTANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES

HCF4096B CMOS IC DIP14 GATE J-K MASTER-SLAVE FLIP-FLOPS DIP14 Ersetzt ua MC14096 HEF4096 HCF4096 SCL4096 CD4096

HCF4097B CMOS IC DIP24 HCF4097B  8Kanal MULTIPLEXER DEMULTIPLEXER ANALOG DIFFERENTIAL 8 CHANNEL MULTIPLEXER DEMULTIPLEXERLOW ON RESISTANCE: 125? (typ.) OVER 15Vp-p SIGNAL INPUT RANGE FOR VDD - VSS = 15V HIGH OFF RESISTANCE: CHANNEL LEAKAGE OF +/- 10pA (typ.) at VDD - VSS = 10V

CD4099BE CMOS IC DIP16 CD4099BE  8Bit Addres Latch Ersetz ua. CD4099 HEF4099 HCF4099 MC14099 SCL4099

4162BE DIP16 = SCL4162 SYNCHR PROGRAMMABLE 4-BIT BCD DECADE COUNTER WITH SYNCHRONOUS CLEAR SYNCHRONOUS PROGRAMMABLE 4-BIT COUNTERS = DECADE WITH SYNCHRONOUS CLEAR

CD4000 HCF4000 HEF4000  CMOS IC DIP14  NOR Gate  Restbestand solange Vorrat reicht - gemischte Hersteller CD4000 HCF4000 HEF4000

4009 CMOS IC DIP16  HEX BUFFERS CONVERTERS

CD4011BE IC CMOS ersetzt auch HCF4011, CD4011, MC14011...... SCL4011 uvwm. Quad 2Inp NAND Gate DIP14
