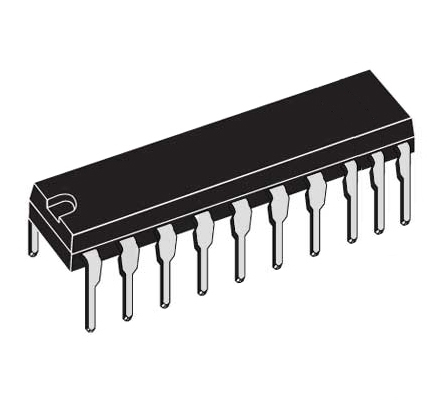

TLC1541 DIP20 AD Converter 10Bit Analog to Digital Converter TLC1541 10-BIT ANALOG-TO-DIGITAL CONVERTER WITH SERIAL CONTROL AND 11 INPUTS 10-Bit Resolution A/D Converter Microprocessor Peripheral or Standalone Operation On-Chip 12-Channel Analog Multiplexer Built-In Self-Test Mode Software-Controllable Sample-and-Hold Function Total Unadjusted Error... ±1 LSB Max Pinout and Control Signals Compatible With TLC540 and TLC549 Families of 8-Bit A/D Converters CMOS Technology Pinlayout siehe weitere Bilder

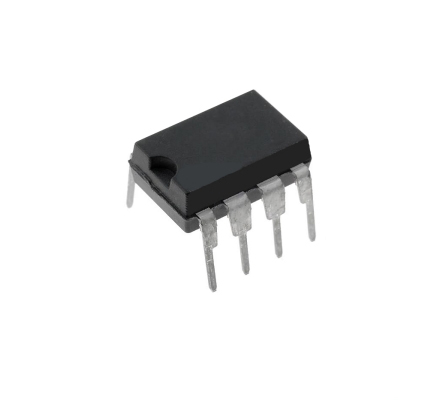

TLC271 DIP8 IC OP AMP 1-fach Operationsverstärker TLC 271CP DIP8 IC OP AMP 1-fach Operationsverstärker ( ersetzt auch TS271 ) LinCMOS PROGRAMMABLE LOW-POWER OPERATIONAL AMPLIFIERSInput Offset Voltage Drift ...Typically 0.1 µVWide Range of Supply Voltages Over 3 V to 16 VSingle-Supply OperationCommon-Mode Input Voltage RangeExtends Below the Negative Rail (C-Suffix and I-Suffix Types)Low Noise . . . 25 nV/vHz Typically at f = 1 kHz (High-Bias Mode)Output Voltage Range includes Negative RailHigh Input Impedance . . . 10hoch12 Ohm ESD-Protection Circuitry Pinlayout siehe weitere Bilder

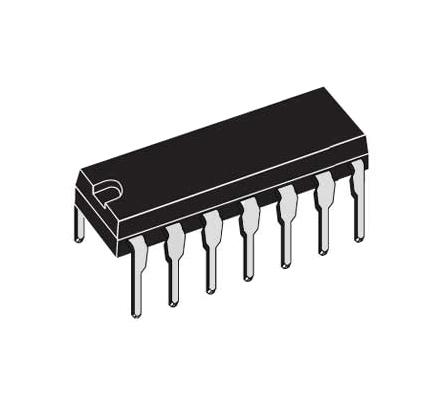

TLC274 DIP14 IC QUAD OP AMP 4-fach OperationsverstärkerLinCMOS PROGRAMMABLE LOW-POWER OPERATIONAL AMPLIFIERSInput Offset Voltage Drift ...Typically 0.1 µVWide Range of Supply Voltages Over 3 V to 16 VSingle-Supply OperationCommon-Mode Input Voltage RangeExtends Below the Negative Rail (C-Suffix and I-Suffix Types)Low Noise . . . 25 nV/vHz Typically at f = 1 kHz (High-Bias Mode)Output Voltage Range includes Negative RailHigh Input Impedance . . . 10hoch12 Ohm ESD-Protection Circuitry Pinlayout siehe weitere Bilder
TLC27M4 DIP14 IC Quad OP AMP 4-fach Operationsverstärker LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS Wide Range of Supply Voltages Over Range: 3 V to 16 VSingle-Supply OperationCommon-Mode Input Voltage RangeThe TLC27M4 quad operational amplifiers combine a wide range of input offsetvoltage grades with low offset voltage drift, highinput impedance, low noise, and speedscomparable to that of general-purpose bipolar devices Datenblatt ansehen
